FL 1.4 / 1.7 HFFS - Spout / Zipper Pouch & Flat Sachet Machines

The FL 1.4 and FL 1.7 machines are highly versatile horizontal form-fill-seal (HFFS) solutions for packaging a wide variety of products into stand-up pouches with zipper or Velcro™, corner spout or top spout, 3-side and 4-side seal sachets, and custom shapes from rollstock. This series is ideal for businesses requiring greater production flexibility in small to medium-sized packaging, including spout and zipper formats. Its robust, mid-size design can be made to accomodate multiple fillers for enhanced adaptability.

Reliable Versatility
The FL 1.4 / 1.7 series provides precise filling for liquids, creams, powders, granules, and solids, using advanced filling and leakproof sealing technology to preserve product freshness and consistency. They are ideal for manufacturing beverages, sauces, spices, coffee and tea, snacks, nuts, and dried foods, pet products, pharma, personal care, bakery, chocolates and candy.

Fast and Efficient
Available in simplex and duplex configurations, these machines achieve speeds of 90 to 220 pouches/minute, depending on the format and filler, enabling businesses to meet demanding output requirements with ease and efficiency.

Easy Operation and Quick Changeovers
This range features an intuitive HMI touch screen that allows operators to easily adjust settings and quickly switch between recipes, reducing downtime and ensuring smooth production.

Durable and Low Maintenance
These robust machines require minimal maintenance and offer long-term reliability, backed by a 3-year warranty for peace of mind and excellent investment value.

FL 1 7 WEB
hffs-rollstock-small-pouch-machine-fl-1.4.-1.7-3
hffs-rollstock-small-pouch-machine-fl-1.4.-1.7-4
hffs-rollstock-small-pouch-machine-fl-1.4.-1.7-2
Fltecnics Multi-Product Machine 1.4 M3C FLT2 - Pharma Packaging Solution
FL 1 7 WEB
hffs-rollstock-small-pouch-machine-fl-1.4.-1.7-3
hffs-rollstock-small-pouch-machine-fl-1.4.-1.7-4
hffs-rollstock-small-pouch-machine-fl-1.4.-1.7-2
Fltecnics Multi-Product Machine 1.4 M3C FLT2 - Pharma Packaging Solution

MACHINE CONFIGURATIONS

  • FL 1.4 FLT 1 - Max. Product Volume 600cc Pouch 50x50 - 140x300mm / Max. Speed 80 ppm*
  • FL 1.4 FLT2 - Max. Product Volume 150cc Pouch 45x60 - 70x300mm / Max. Speed 160 ppm*
  • FL 1.4 STU 1 - Max. Product Volume 900cc Pouch 60x60 - 140x300mm / Max. Speed 80 ppm*
  • FL 1.4 STU 2 - Max. Product Volume 200cc Pouch 60x60 - 70x300mm / Max. Speed 160 ppm*
  • FL 1.4 TV1 - Max. Product Volume 900cc Pouch 85x100 - 140x300mm / Max. Speed 60 ppm*
  • FL 1.7 FLT1 - Max. Product Volume 750cc Pouch 70x70 - 170x300mm / Max. Speed 80 ppm*
  • FL 1.7 FLT2 - Max. Product Volume 200cc Pouch 50x60 - 85x300mm / Max. Speed 160 ppm*
  • FL 1.7 STU 1 - Max. Product Volume 1250cc Pouch 70x70 - 170x300mm / Max. Speed 80 ppm*
  • FL 1.7 STU 2 - Max. Product Volume 250cc Pouch 60x60 - 85x300mm / Max. Speed 160 ppm*
  • FL 1.7 TV1 - Max. Product Volume 1250cc Pouch 85x100 - 170x300mm / Max. Speed 60 ppm*
  • FL 1.7 CV1 - Max. Product Volume 1250cc Pouch 105x100 - 170x300mm / Max. Speed 60 ppm*
  • *Max. speed will vary depending on the products and film used. Final speed is confirmed after testing.

Low maintenance costs and flexibility, built in stainless steel, make this series the perfect option to those clients who look for robust equipment with the latest technology and software advances (modem for remote assistance, etc.). FLtècnics offers a 3 years warranty on all of its equipment as a sign of commitment to our Customers.

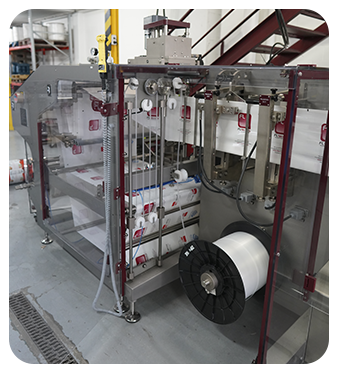

Zipper Applicator

  • Adaptable zipper module applicator
  • Stainless Steel AISI-304
  • Variety of zipper profiles or Velcro
  • Easy to adjust for different formats

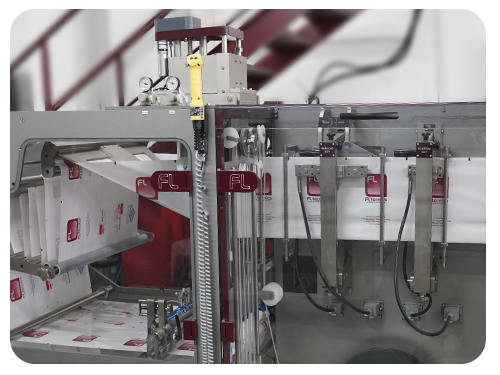

Forming Triangle with

Motorized Film Alignment System

  • Motorized monobloc system
  • Perfect film alignment
  • Alignments in real time (every machine cycle)

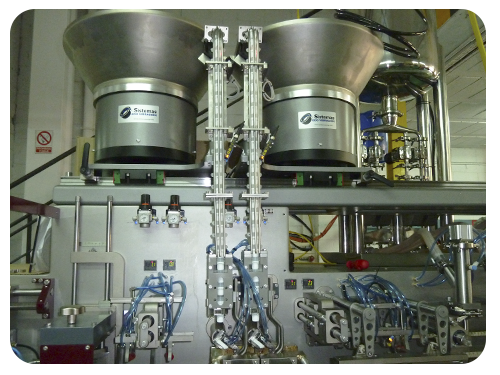

Top & Corner Spout Applicator

  • Independent and motorized modular spouts applicator
  • Easy to adjust, during machine operation
  • Corner and top spout with the same applicator
  • Spout elevator

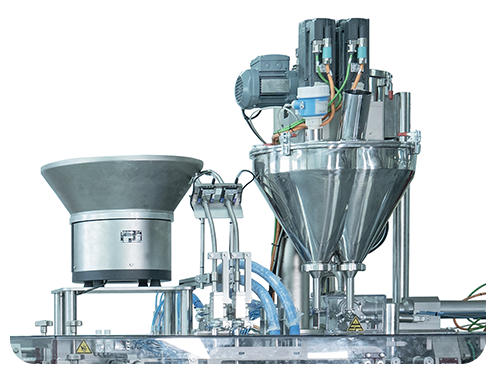

Multiple Filling Stations

  • Up to three filling stations
  • Combination of different filling systems
  • Versatility: Multi-ingredients products

Solid Filling Systems

For powders, granulates & pieces:

  • Auger filler, Volumetric cup filler lineal and rotary, designed and manufactured by FLtècnics
  • Multi-head & lineal weighers
  • Counting filling systems
  • Customized fillers for special applications

Liquid Filling Systems

For liquid and pasty products:

  • Mass and magnetic flow meters: Endress+Hausser, Bopp & Reuther
  • Piston fillers with pneumatic or servomotor operation
  • Customized fillers for special applications
  • Innovative system of filling correction in real time, standard on all our flow-metering dosing system
