Pharmaceutical Products in 4 Side Sealed Sachets

Jun 17, 2021 | Daniel Olle

When a leading pharmaceutical laboratory located in Central America approached FLTécnics a ProMach product brand-, looking for a customised solution to pack 3 different products (tablets, pharmaceutical powder and liquid gel) in 4 side sealed sachets, we were sure to comply all these requirements by offering our versatile Horizontal Form, Fill & Seal machine model FL 1.4 M3C FLT2, duplex, which can allocate three different filling systems: Tablet filler, Auger filler and liquid filler.

Customer Challenge

Pharmaceutical industry demands high quality standards when packing their products. This laboratory requested a HFFS machine to ensure a perfect package finish and production reliability besides high operation versatility to pack different product types at medium production speeds of 150 sachets per minute

Among other features, three filling stations and reduced changeover time, made the customer trust in FLTècnics solution.

The FLTècnics solution

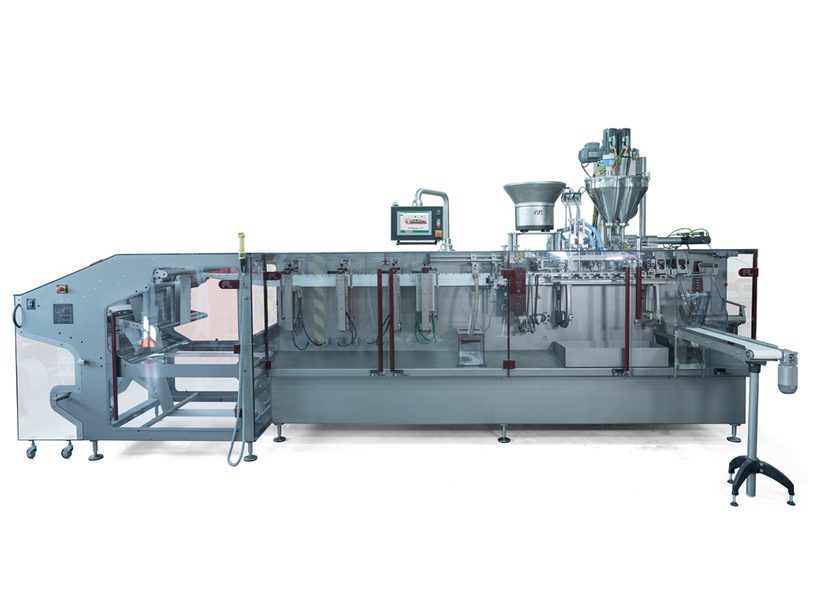

FLTècnics supplied a HFFS rollstock machine model FL 1.4 M3C FLT2 in duplex version as per customer’s URS. Versatility to change formats and products were required to pack tablets (1 and 2 per sachet), powders and liquids in 4 side sealed sachet; the target was to reach up to 150 sachets per minute

In addition, the client required that this equipment was able to make stand up pouches in the future, so that the equipment has an unwinding module that allows adaptation for this type of packaging.

Speed: up to 150 sachets/minute
Sachet style: 4 side seals
Filling system: Servo motorized Auger filler, servo motorized piston pump and tablet filler

RESULTS

  • High dosing accuracy < 1%
  • Easy to clean
  • Customized & feasible solution
  • Production tracking
  • Efficiency
  • Product safety
  • Sealing integrity

CHARACTERISTICS OF THIS EQUIPMENT

  • Easy and fast change over: Motorized bottom and vertical sealing bars & film feed unit and scissors (between 20 - 30 minutes)
  • PLC and HMI with interactive touch screen including recipes screen.
  • Servo motorized film-feed unit.
  • Tear notch for easy opening.
  • Pick & Place and grouping transport belt
  • Machine frame made in stainless steel AISI 304.
  • GMP design
  • All product contact parts made in stainless steel
  • AISI-316L.
  • IQ-OQ protocols
  • Machine designed in compliance with CFR 21 part11 requirements IPC components.
